Duntong

Original cylindrical tongue drum V5 starter explorer for issue #1.

Readiness V5 starter/build-packet candidate
Fabrication status Not build-ready
Primary authority Workbook and design-table starter values
Missing authority Measured data, checked DXF, native CAD, shop CAM

Packet Summary

The duntong combines a cylindrical drum body with tuned wooden tongue-drum voices around the shell. The current packet preserves two workbook-derived prototype sizes and keeps the medium stave-cylinder as the V1 target.

Honest boundary The OpenSCAD file and SVG drawings are review artifacts. They help inspect the concept, but they do not replace checked CAD, DXF exports, measured templates, or prototype tuning data.

Variant Snapshot

Variant Size Root Construction Authority posture
DNT-HANDHELD 6 in OD x 9 in long C5 Split-blank or stave Measurement required
DNT-MEDIUM 12 in OD x 16 in long C4 Stave cylinder V1 starter target, measurement required

Authority Chain

Artifact Role Status
duntong-design-table.xlsx Workbook source for starter dimensions Starter authority
cad/design-table-inputs.csv Repo-readable design table Starter authority
cad/duntong_master.scad Parametric master-layout starter Not production CAM
drawings/*.svg Review previews Not DXF fabrication authority
validation.csv Prototype measurement gates Pending measurements

Open Gates

  • Cut same-stock tongue coupons and measure pitch before shell cutting.
  • Confirm Padauk or substitute material constant after stock selection.
  • Measure curved-shell tongue shift and tune from long/flat rough cuts.
  • Select sealed, ported, two-port, or drumhead end condition after tests.
  • Create checked DXF/native CAD before laser, CNC, or router work.
  • Validate V-block clearance, indexing, feeds, speeds, and hold-down at the actual machine.

Review Files

  • capstone-manifest.json
  • visual-output-register.csv
  • cad/mcp-session-log.md
  • family-spec.csv
  • cad/SolidWorks-MasterLayout-Plan.md
  • print-packet.html

Images

duntong — hero concept render

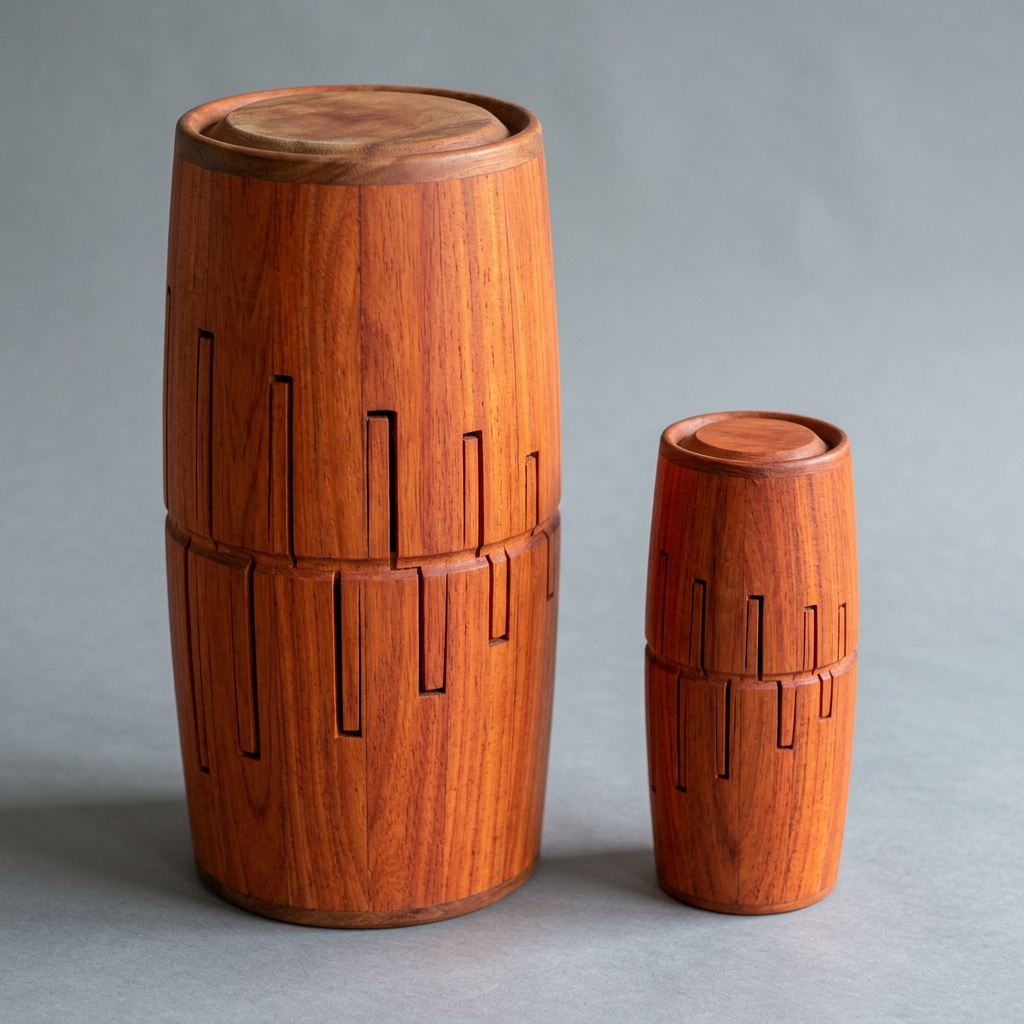

duntong — family group render

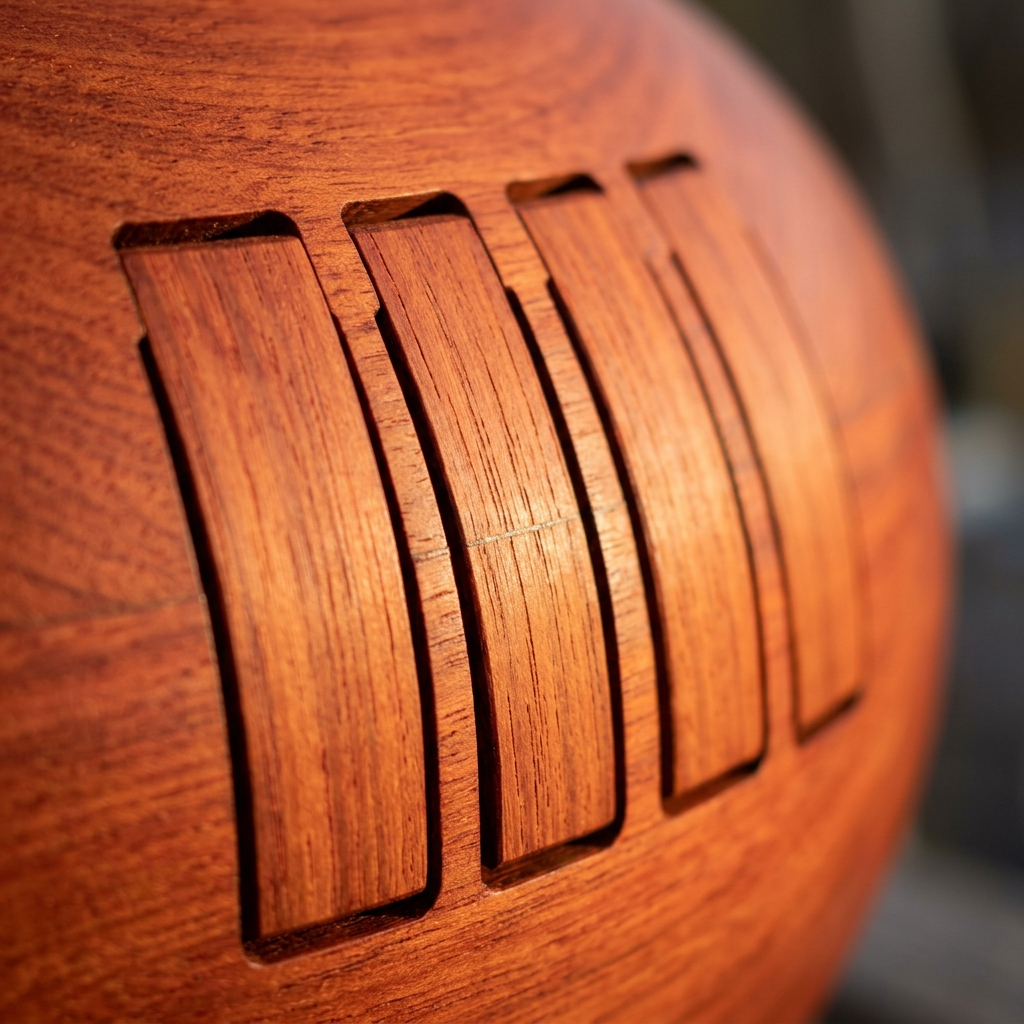

duntong — tongue ring macro detail

Interactive Wolfram Model

Live parametric explorer (empirical estimates — not fabrication authority).
