Glockenspiel Build Packet

A C5-C7 chromatic metal-bar idiophone packet with a 10-bar pentatonic variant, free-free beam math, node-support gates, metallurgy checks, and tuning validation paths. Current readiness is a V5 build-packet candidate, not a measured or build-ready release.

Status

Primary target
25 bars C5-C7Chromatic 6061-T6 aluminum flat-bar glockenspiel.
Variant
10 bars pentatonicC-major art-fair build using the same stock and support logic.
Readiness
V5 candidateNo bars cut, mounted, struck, measured, or tuned yet.
Authority
Design-table firstMeasured K, node-support sustain, and framed tuning remain blockers.
Release boundary: use this packet for design review and pilot planning. Do not treat the bar lengths, node supports, metallurgy constants, SVGs, PDF, site, or Wolfram source as build-verified until the validation rows carry measured evidence.

Authority Map

DomainCurrent authorityBlocked until
Bar dimensionsfamily-spec.csv, glockenspiel-design-table.xlsxC5/A5/C7 pilot bars measure effective K for the actual stock lot.
Node supportFormula nodes at 22.4% and 77.6%, plus drawings/mounting-detail.svgGrommet durometer/sustain pilot is logged.
Metallurgy6061-T6 literature/workbook K = 204431Supplier certificate or measured K_eff confirms the actual material lot.
Tuningvalidation.csv and validation-loop.csvFlat, post-trim, mounted, and framed tuner captures are recorded.
Visualsvisual-output-register.csvAll generated/review visuals stay downstream of design-table/CAD authority.

Representative Bars

BarHzLengthNode 1Node 2Use
C5523.2519.883 in2.216 in7.667 inLow pilot, longest bar.
A5880.0007.621 in1.709 in5.912 inMid-scale K check.
C72093.0054.941 in1.108 in3.834 inHigh pilot, shortest bar.
Glockenspiel family overview drawing

Packet Files

Design
design.mdFree-free beam model, material matrix, support and tuning discipline.
Schedule
family-spec.csv25 chromatic rows plus 10 pentatonic rows.
Validation
validation.csvMeasured Hz/cents/sustain capture table.
Loop
validation-loop.csvReadiness checks for K, supports, metallurgy, frame, and visuals.
Authority
authority-ledger.csvHuman-readable claim-to-evidence ledger.
Visuals
visual-output-register.csvMachine-checked visual authority register.
CAD
OpenSCAD starterLayout mockup, not final native CAD.
Print
print-packet.pdfPrintable review packet, not measured proof.

Visual Review

C5 pilot bar drawing
A5 pilot bar drawing
C7 pilot bar drawing
Node support mounting detail

Images

glockenspiel — concept render

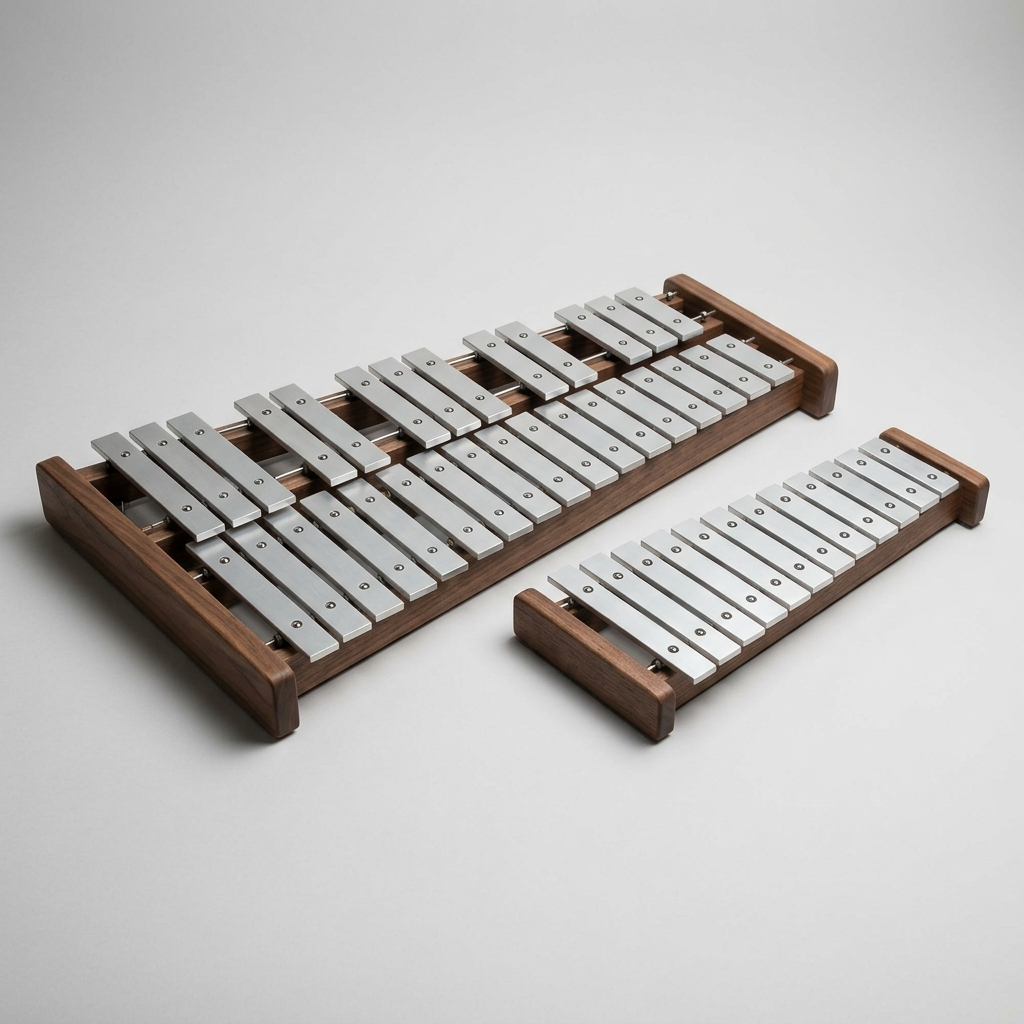

glockenspiel — family group render

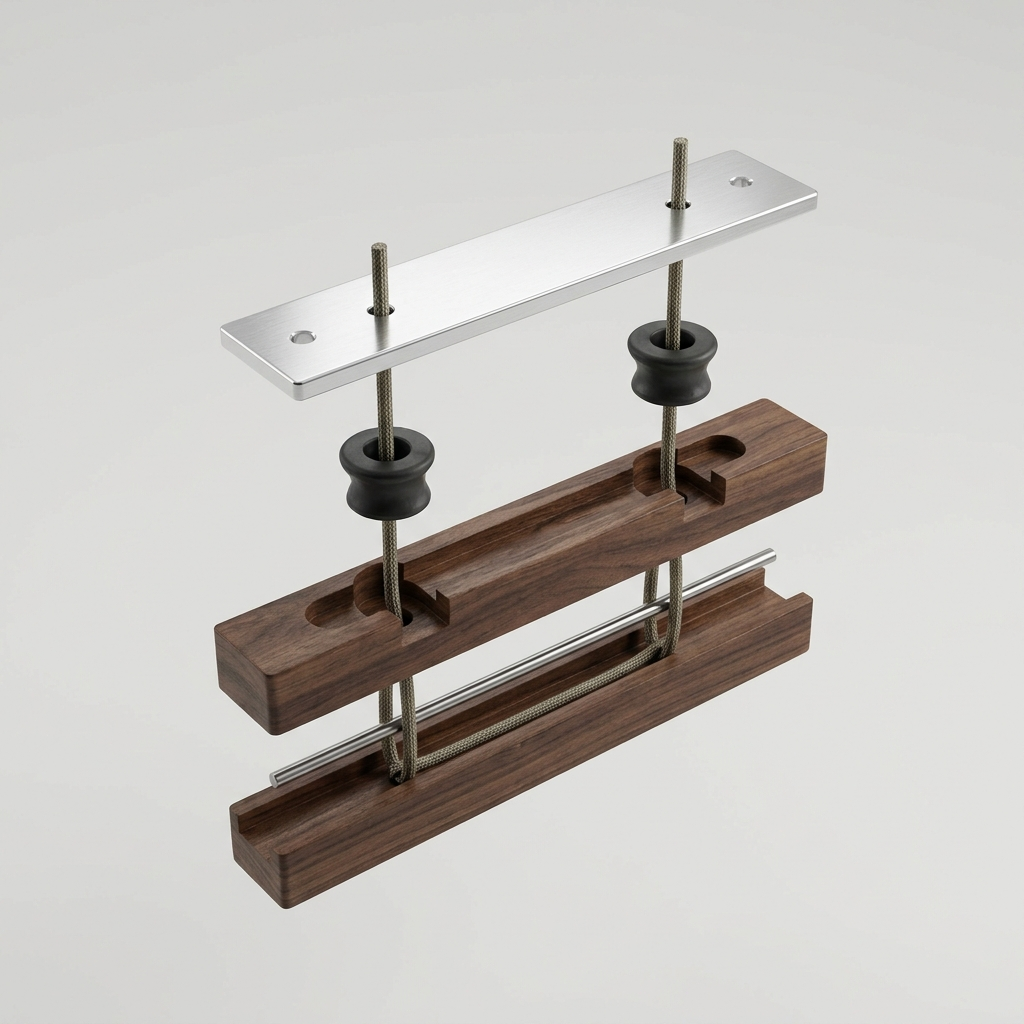

glockenspiel — exploded diagram

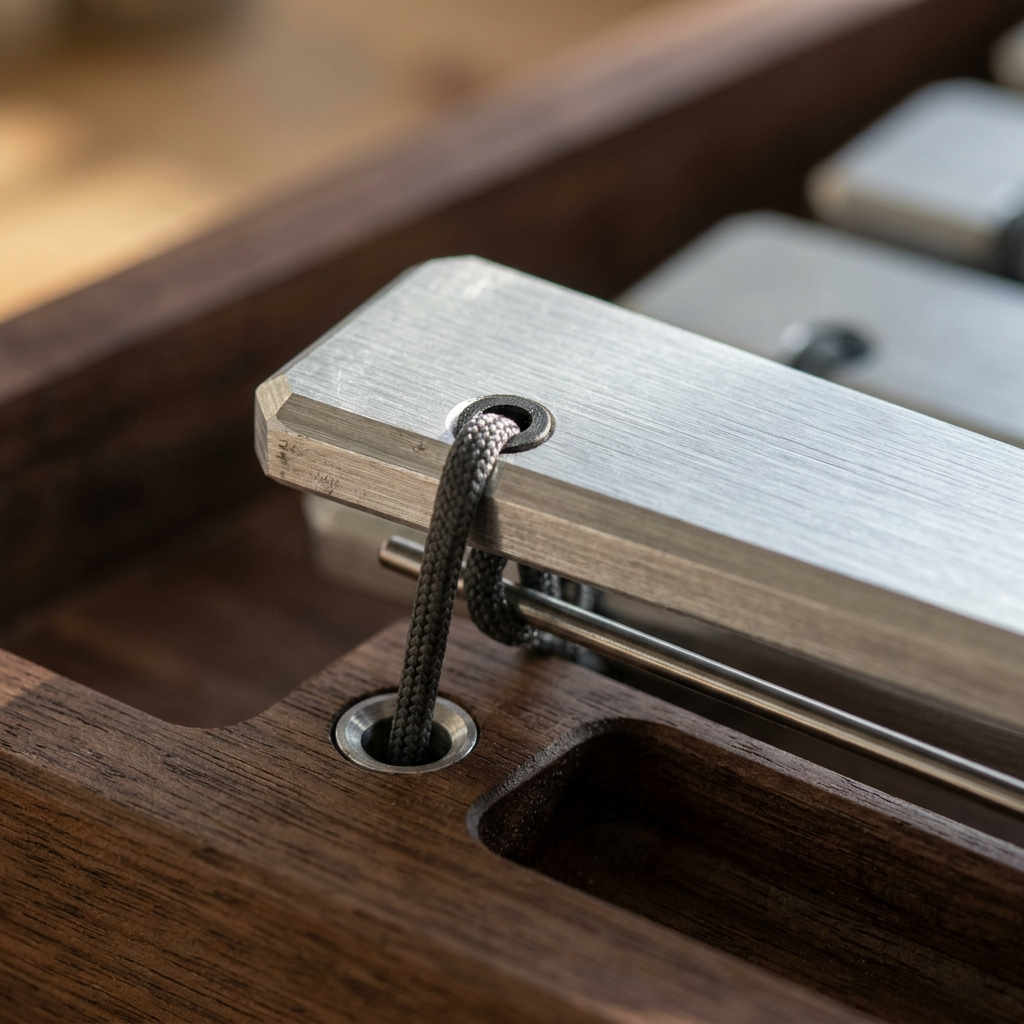

glockenspiel — bar grommet mount macro

Next Gates

GateEvidence needed
Pilot bar KCut C5, A5, C7 long, measure on soft node supports, compute K_eff.
Support dampingCompare grommet durometers and log sustain seconds plus buzz/rattle observations.
Supplier checkVerify bar stock alloy, temper, dimensions, price, lead time, and substitution path.
Framed tuningRecord soft/medium/loud tuner captures after mounting in the walnut frame.
Native CADGenerate/review SolidWorks or STEP deliverables before shop-release claims.

Interactive Wolfram Model

Live parametric explorer (empirical estimates — not fabrication authority).
