Build target
G2 fujara / A2 study baseline · Fujara Studio Explorer
Focus
Slovak overtone fipple flute with side air tube
Status
V5 candidate  Build-ready blocked Packet version round30-v5-candidate
Family
overtone flutefipple fluteside-tube fujarawoodwind
Release gates
  • No physical prototype measurements are present; empirical validation remains deferred.
  • V5 candidate files, OpenSCAD starter, vector review plates, print packet, and authority registers are committed.
  • SolidWorks source CAD exists, but no browser-renderable GLB/glTF export is committed for model-viewer.
  • Flue/labium and side air-tube delivery measurements are required before any shop release.
  • Cultural attribution should be reviewed before public promotion.

01 · OverviewFujara Studio Explorer

fujara — concept render

The fujara is a Slovak overtone shepherd's flute from the Podpolanie region; this repository documents Tony Koop's engineering derivation and does not claim cultural ownership of the tradition.

Scope & provenance

Pattern: Parametric stave-built fujara study with SolidWorks source CAD, acoustic/capstone analysis, and deferred physical validation. Public-domain status: Engineering files are CC-BY 4.0; cultural/music practice requires respectful attribution. The fujara is a Slovak overtone shepherd's flute from the Podpolanie region; this repository documents Tony Koop's engineering derivation and does not claim cultural ownership of the tradition.

target fundamental
A2 / 110 Hz capstone baseline
candidate aspect ratios
45:1, 50:1, 55:1, 60:1 L:D
baseline bore id
1.25 in / 31.75 mm from G2 SolidWorks references
hole layout rule
three fujara holes at 68%, 73%, and 83% of long chamber length
dimension authority
design-table workbooks, SolidWorks files, SW reference CSVs, and capstone CSV outputs

· Repo artifactsDesign tables · research · source files

▶README.mdMDRepository narrativeOpen
Workbook
fujara-design-table.xlsxfujara-design-table.xlsx

Open

Workbook
fujara-dimensions-parametric.xlsxdesign-table/fujara-dimensions-parametric.xlsx

Open

Artifact
README.mdanalysis/flue-integration/README.md

Open

Artifact
acoustic-impact.mdanalysis/flue-integration/acoustic-impact.md

Open

Artifact
geometry-comparison.mdanalysis/flue-integration/geometry-comparison.md

Open

Artifact
manufacturing-impact.mdanalysis/flue-integration/manufacturing-impact.md

Open

Artifact
recommendation.mdanalysis/flue-integration/recommendation.md

Open

02 · CAD export queueglTF / GLB pending

Model-viewer asset needed

Source CAD exists, but no browser-renderable .glb or .gltf was found yet. Export the chosen SolidWorks assembly into the repo's CAD folder and rerun this generator; the explorer will then inline small .glb files automatically.

CAD source
7815K833_High-Strength 932 Bronze Flanged Sleeve Bearing.SLDPRTSolidWorks/source model

Open

CAD source
Cork.SLDPRTSolidWorks/source model

Open

CAD source
FujaraBottomG2.SLDPRTSolidWorks/source model

Open

CAD source
Fujara_Assembly.SLDASMSolidWorks/source model

Open

CAD source
G2FujaraFlue.SLDPRTSolidWorks/source model

Open

CAD source
G2FujaraFluePlug.SLDPRTSolidWorks/source model

Open

CAD source
G2FujaraTop.SLDPRTSolidWorks/source model

Open

CAD source
G2Fujara_MouthpieceBottom.SLDPRTSolidWorks/source model

Open

CAD source
G2Fujara_MouthpieceTop.SLDPRTSolidWorks/source model

Open

CAD source
bottomtube.SLDPRTSolidWorks/source model

Open

CAD source
mouthpiece.SLDPRTSolidWorks/source model

Open

CAD source
toptube.SLDPRTSolidWorks/source model

Open

Showing 12 of 18 CAD source files.

· Capstone deliverablesDeck · print packet · explorer

Manifest
capstone-manifest.jsonArtifact inventory; release gates; required-before-public list

Open JSON

Studio explorer
explorer.htmlThis document. Generated by instrument-maker/scripts/generate_explorer.py.

Reload

· Studio mapWhat this explorer can prove today

Readiness boundary

This page is a root-level studio guide over existing repository evidence. It is not a fabrication release by itself: dimensions remain governed by the design-table workbooks, SolidWorks references, and capstone CSV outputs, while physical tuning and overblow validation still require a built fujara.

Design authority
Parametric workbooksFundamentals from D2 through F#3, A2 capstone baseline, and G2 SolidWorks dimensions.

Open workbook · Equations

CAD authority
SolidWorks sourcesBody, side-tube, labium/nest, flue plug, and extracted dimensions are present; web GLB/glTF export is still pending.

SW reference · Dimension CSV

Analysis authority
Capstone scaffoldA2 aspect-ratio sweep, structural modes, acoustic cavity modes, coupled-vs-uncoupled comparison, and reproducibility hashes.

Capstone deck MD · Reproduce

Manufacturing study
Flue integrationMain-branch study comparing the separate flue block against an integrated flue-body variant.

Open study

V5 packet
Candidate artifacts committedRoot packet files, acoustic-law family spec, visual-output register, OpenSCAD starter, vector plates, MCP log, and assembly PDF are present.

Family spec · Visual register · PDF

Remaining blockers
Measurements before releaseNo measured bore/flue/labium/side-tube response or prototype tuning validation is committed yet; GLB/glTF browser CAD export is still pending.

· ImagesConcept renders

fujara — hero concept render
Hero render

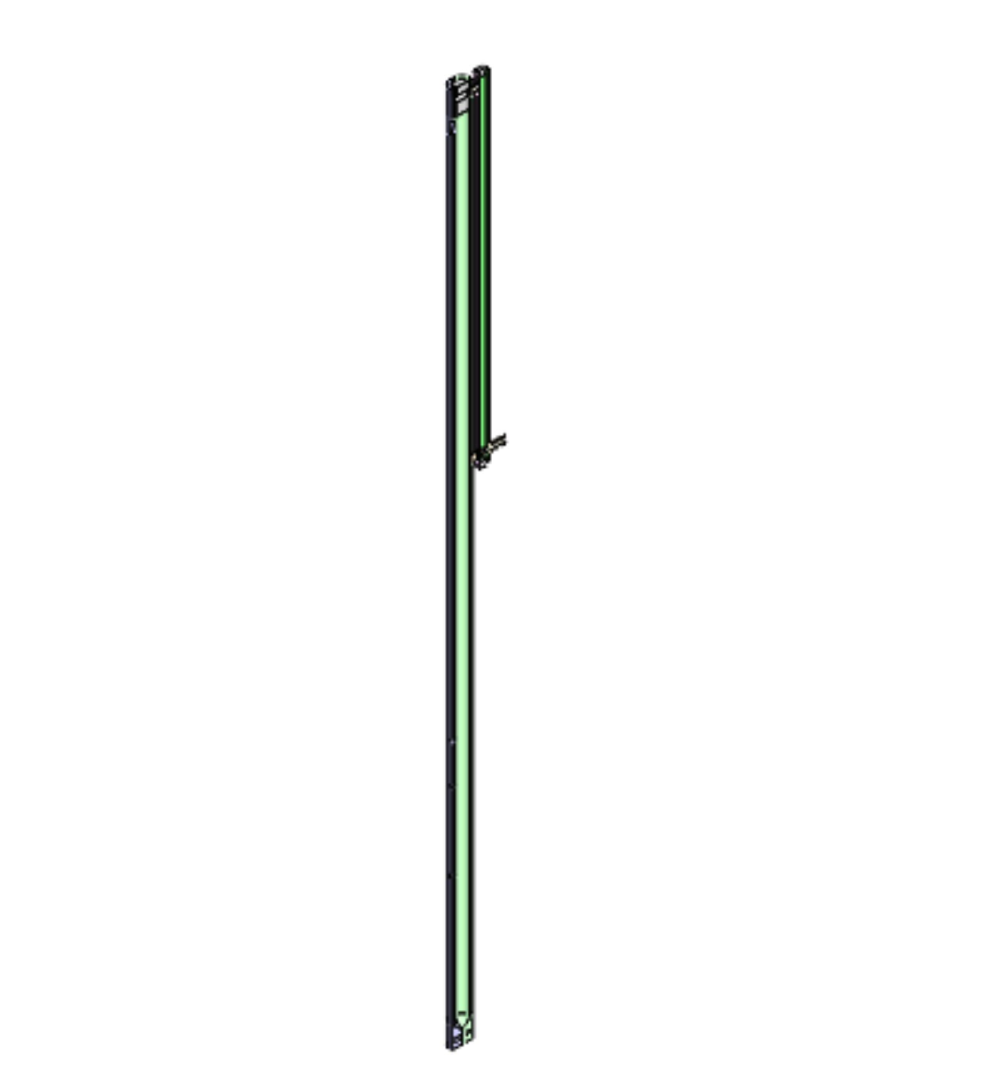

fujara — family group render
Family group

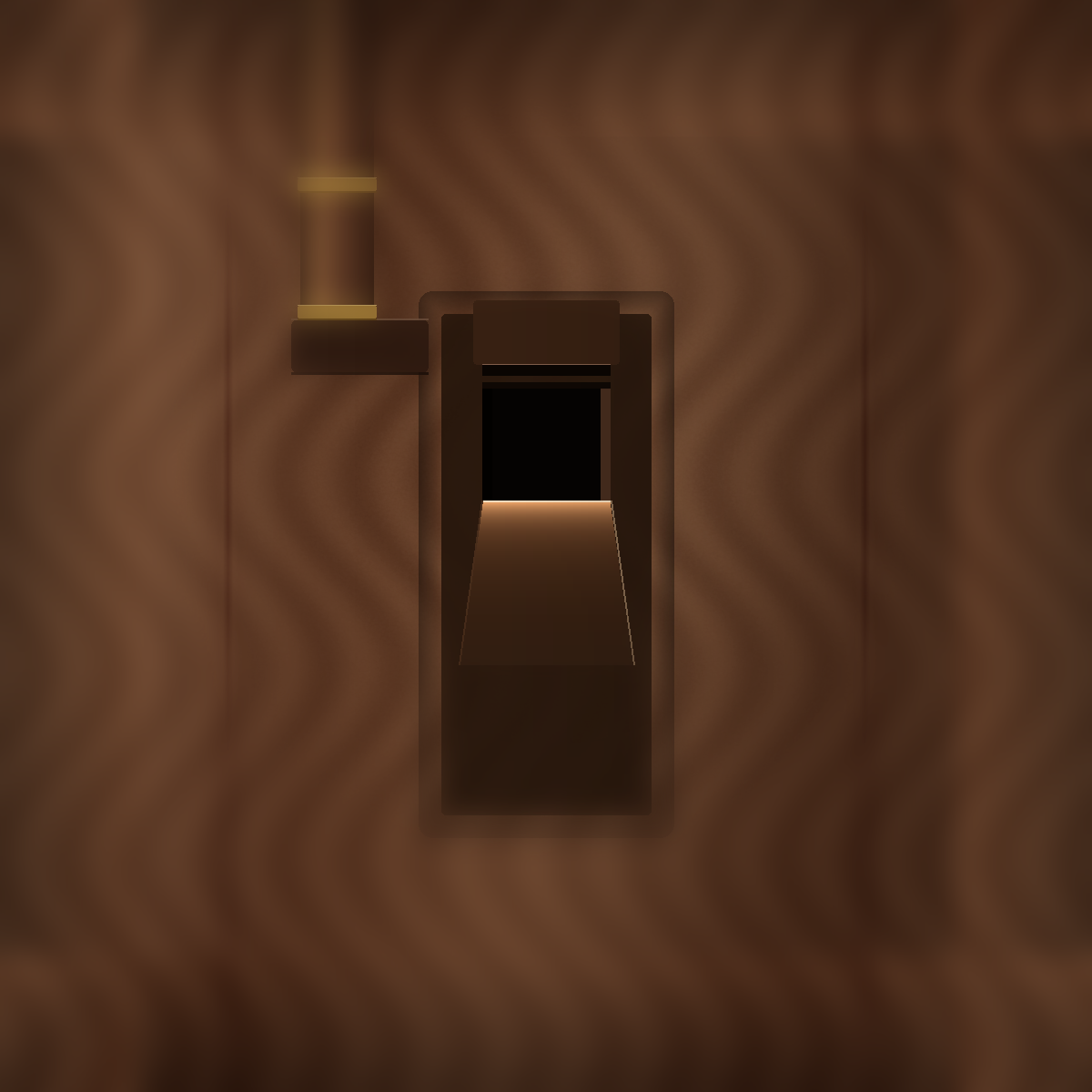

fujara — macro detail of labium/nest junction
